Dashboard-Defined Probability Distributions

Ryan Roper -

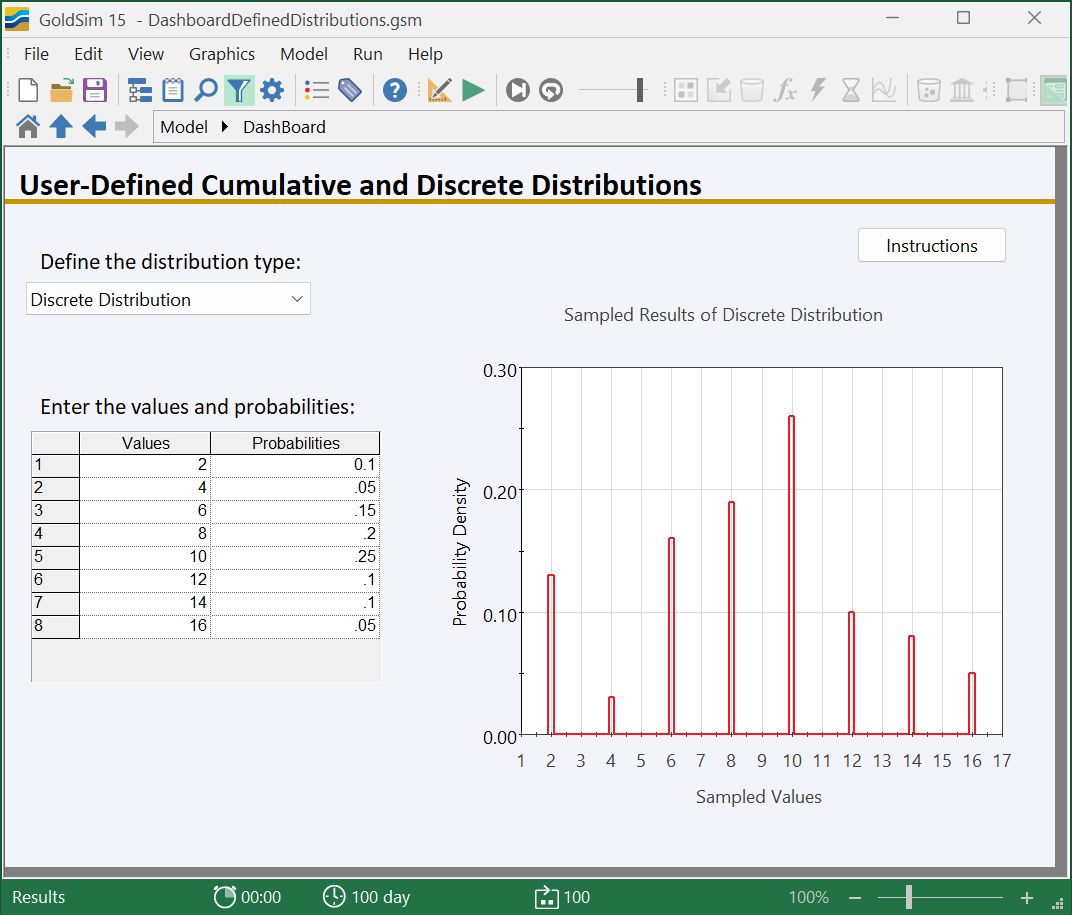

This example illustrates the implementation of logic for defining cumulative and discrete distributions from a dashboard. It is not possible for a user to directly edit values and probabilities for cumulative and discrete stochastic elements from a dashboard. Therefore, values and probabilities are stored in vector Data Elements and a Script Element is used to convert sampled 0-1 probability levels (sampled from a Uniform stochastic) to equivalent sampled values. Enter the dashboard to run the model and see sampled results.

Experience Level:

Novice

Download the Model File:

Tags:

  • discrete
  • stochastic
  • dashboard
  • cumulative
