Lahey FORTRAN Compiled DLL

Ryan Roper -

This example model shows how to use an External Element to call a DLL (compiled in Fortran) to perform calculations outside of GoldSim. The DLL, compiled using a Lahey Fortran compiler, contains three functions, Sum_ (calculates the sum of two input arguments), ProdSum_ (calculates the sum and the product of two input arguments) and Half_ (divides an input argument by 2).

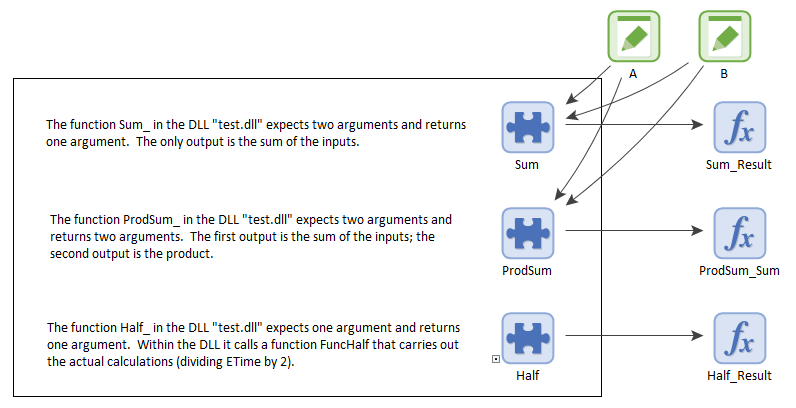

The model file contains three External Elements, Sum, ProdSum and Half. Sum and ProdSum are linked to two data elements, A and B, which provide input arguments to the external functions. Model etime is the input argument to Half.

Experience Level:

Advanced

Download the Model File:

Tags:

  • DLL
  • external
  • fortran
  • External Element
