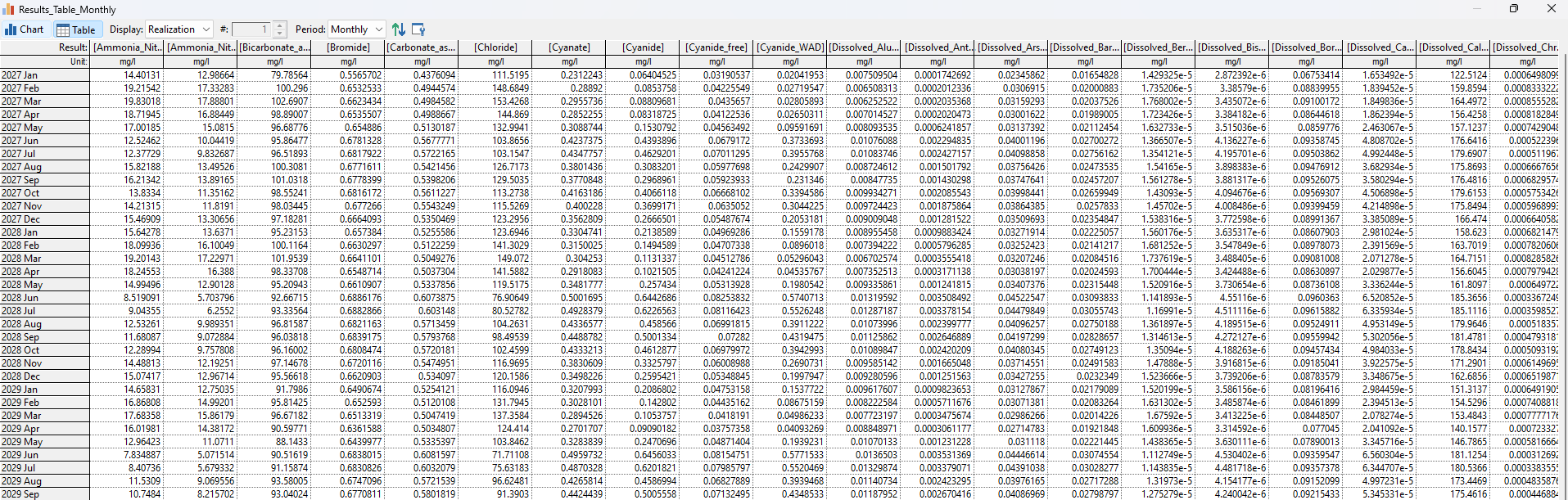

I have a time history element that functions correctly when I run the simulation outside of the scenario mode, producing a table of water quality versus time for different species as shown below. However, when I attempt to run multiple simulations within the scenario mode, the time history element fails to work (because in scenario mode it is now an array?). How can I generate a table like the one below while in scenario mode for different scenarios?
Following up on our support conversation, I wanted to post a summary here for others in the community.
The issue you described is likely due to a specific requirement for comparing scenarios in GoldSim: the outputs must be scalar. Array results cannot be directly compared across scenarios in a Time History Result element. Click here for more.
Adding each item from your array as a separate, scalar output to the Time History Result element should give you the table format you're looking for.
Please let me know if you have any other questions about this.
-Jason
Ashley,

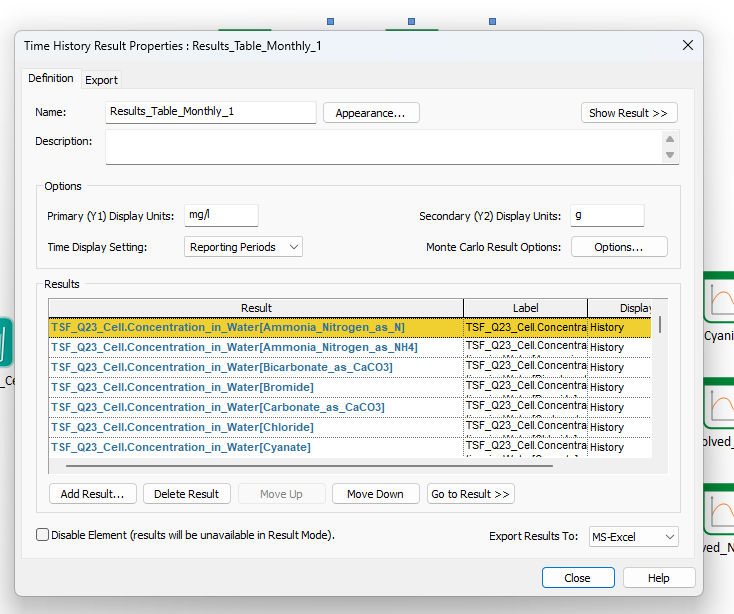

You will need to add each output separately by referencing each item of the array. In the screen capture shown below, I'm clicking on a single output item of the array to link to the Time History.
I hope this helps. Please let me know if you have any other questions.
-Jason

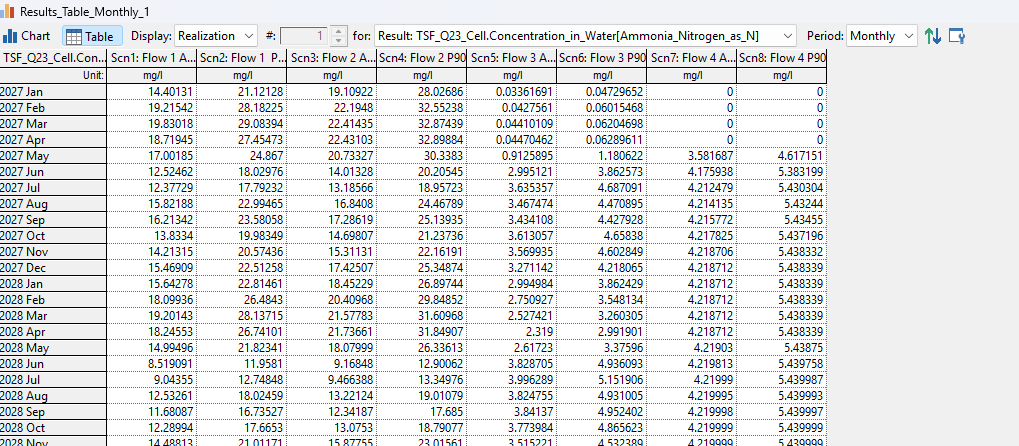

Hi Jason, I considered this, but when doing so the results are displayed for each parameter with a different scenario in each column (see pic below). I'm aiming to create a table that shows all parameters for each scenario in a single table (like my pic above), with an option to toggle between scenarios. Thanks for your help.
Ashley,
If I understand correctly, you want to show all the results for a single scenario, correct? You can toggle scenarios using the drop list shown in your table. In this drop list, you will see the option to pick a specific scenario, which appears to be what you need.
Does that work for you?
-Jason
Yes please do: https://support.goldsim.com/hc/en-us/requests/new
